Middle Lake Steel

"For all your hopper bottom needs"


Hoppers and Cones

"Proven design and quality"

Civic Pride

21-22 Foot Cone

Standard Features:
  • Fourteen 5" x 5" 188 Wall Legs
  • 3/8" x 8" Outside Band
  • 1/4" x 6" Inside Band Manhole,
  • 12 Guage Sheet,
  • Lever Action Chute
  • Painted Inside and Out.
Environmental Responsibility

Heavy Duty 19 Foot Cone

Standard Features:
  • Twelve 4" x 4" 188 Wall Legs Manhole
  • 37 Degree Slope
  • All 2" Square Tube Bracing
  • 1/4" x 8" Outside Band
  • 1/4" x 6" Inside Band
  • Painted Inside and Out
  • Lever Action Chute.
Community Involvement

15 Foot Cone

Standard Features:
  • Eight 4" x 4" 125 Wall Legs In Regular Duty
  • Eight 4" x 4" 188 Wall Legs In Heavy Duty
  • 1/4" x 6" Outside Band
  • 1/4" x 4" Inside Band
  • 35 Degree Slope
  • Square Tube Braces
  • Manhole
  • Painted Inside and Out
  • Lever Action Chute.
Beautification

18 Foot Cone

Standard features:
  • Ten 4" x 4" 188 wall Legs, Manhole
  • 37 Degree Slope
  • 1/4" x 8" Outside Band
  • 1/4" x 5" Inside Band
  • 2" Square Tube Braces
  • Painted Inside and Out
  • Lever Action Chute.
Community Involvement

14 Foot Cone

Standard Features:
  • Eight 4x4 125w legs
  • 1/4" x 6" Outside band
  • 1/4" x 3" Inside Band
  • 35 degree Slope
  • Square Tube Braces
  • 22" Manhole
  • Lever Action Enclosed Chute Painted Inside and Out.

Who We Are

"Hard working and dependable"

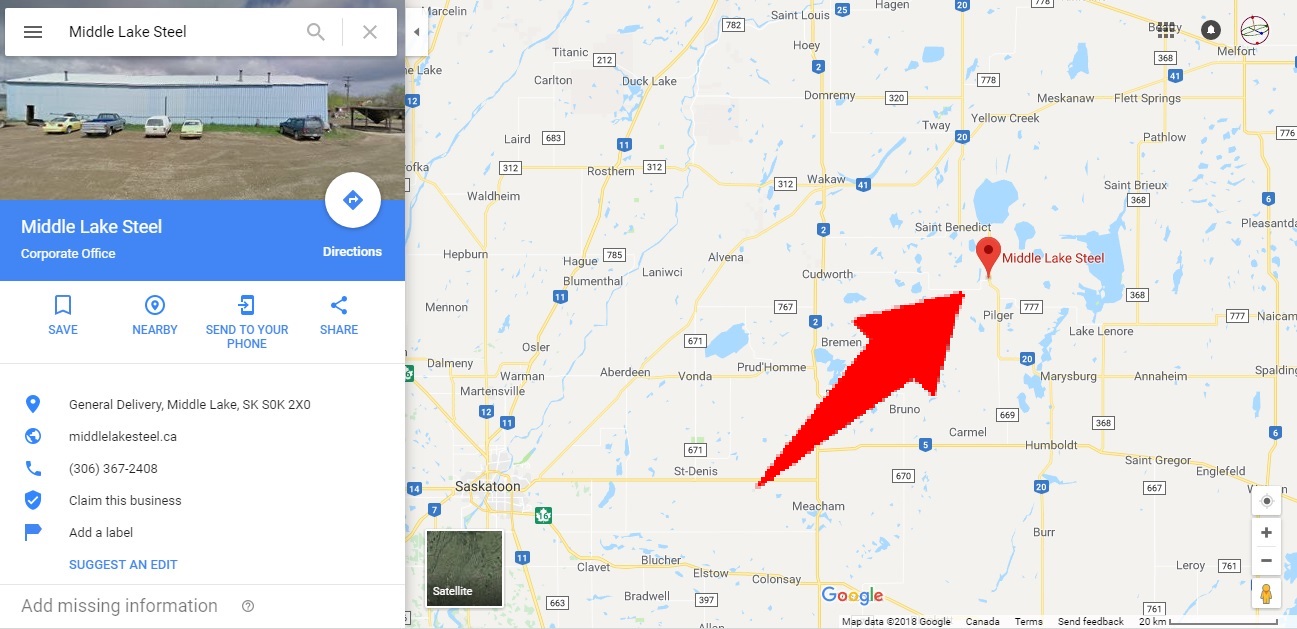

Where We Are

 Click to find us:

Our Community

Organizations we support in the Three Lakes Community:

Important information:


phone Call Us:
(306) 367-2408
Email Us:
dobro.s@hotmail.com
Contact Us:
Jonathan Dobrohoczki, President
